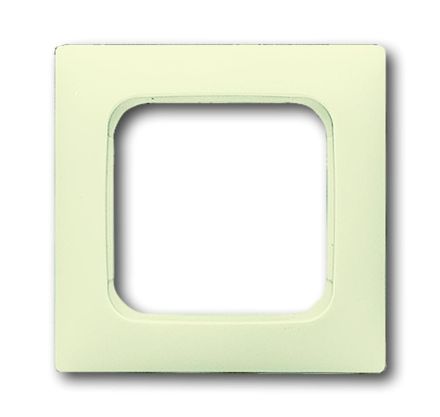

Busch-Jaeger 2511-212K-102 Busch-Duro 2000® SI Linear cover frame, 1-way frame white

In stock

SKU: 120755

Price on request

€1.98

€0

Overview

Busch-Duro 2000 SI Linear cover frame, white, SI/Reflex SI, frame Busch-Duro 2000 SI Linear, Busch-Duro 2000 SI Linear cover frame 1-way frame With small corner radii for cut duct covers. For vertical and horizontal installation. Protection class device: IP 20

Property	Value
Height:	11 mm
Width:	81 mm
Material:	plastic
RAL number (similar):	1013
Mounting direction:	horizontal and vertical
Number of units:	1
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	81 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Duroplast
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	1
Number of units vertical:	1
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	1
With mounting frame:	no
Impact resistance:	IK03
