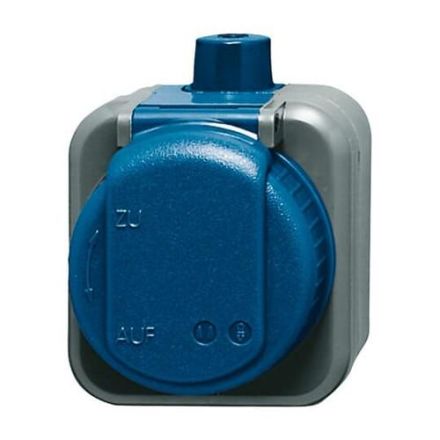

Busch-Jaeger 2300 EWDI SCHUKO® socket, 2-pole

In stock

SKU: 120729

Price on request

€50.76

€0

Overview

Impact-resistant housing for difficult conditions With screw terminals. For difficult conditions on site such as aggressive media (ammonia, petrol, oils, greases, cleaning agents in usual concentrations) we recommend using the cable entries 2070/2071.

Property	Value
RAL number (similar):	5010
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP66
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	yes
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With Fine-wire fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular design):	1
Device width:	82 mm
Device height:	54 mm
Device depth:	63 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With Signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

HAB2300 EWD

Manufacturer

HAN2CKA002083A0343

GTIN4011395228401

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP66

Device width82 mm

Device height54 mm

Device depth63 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)5010

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionYes
