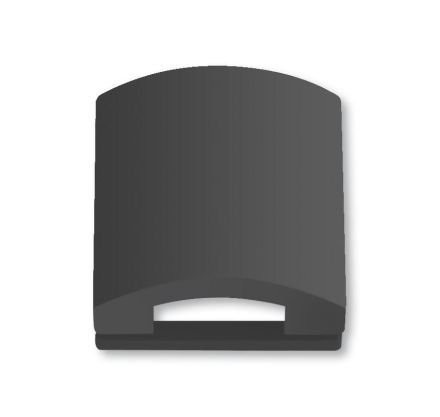

Busch-Jaeger 1746-81 central plate anthracite

In stock

SKU: 319374

Price on request

€12.94

€0

Overview

Central plate, anthracite, data communication, data communication, central plate with hinged lid. For telecommunications applications with cover plate 50 x 50 mm. With cover plate 50 x 50 mm, e.g. from AMP, Brand-Rex, Rutenbeck, BTR, Telegärtner etc.

Property	Value
Composition:	Control element
Use:	other
Support ring:	no
With dust protection:	no
With hinged lid:	no
Outlet direction:	straight
Label field:	without label field
With print:	no
Mounting type:	Flush-mounted
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
Color:	anthracite
RAL number (similar):	7021
Transparent:	no
Mounting type:	Mounting with screw
With bushings/couplings:	no
With strain relief:	no
Sockets shielded:	no
Housing shielded:	no
Lamp terminal:	no
Suitable for protection class (IP):	IP20
Device width:	63
Device height:	63
Device depth:	32
Min. depth of device socket:	40
