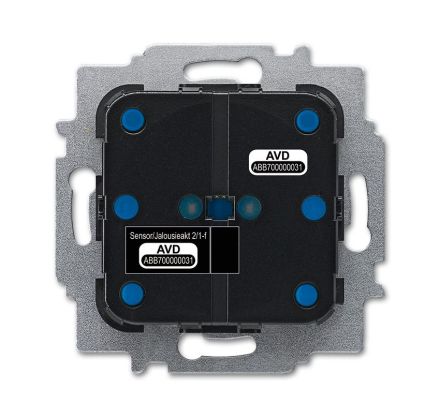

Sensor/blind actuator 2/1-way, wireless, Busch-free@home, sensor/actuator combinations, wireless, sensor/blind actuator 2/1-way, wireless for Busch-free@home For controlling blind or awning motors. Communication with the free@home system is wireless. With integrated blind actuator. Blind function is also available without prior programming (left sensor channel pre-configured). Configuration can be changed later via the web interface (groups, scenes, .). Right sensor channel for programming additional functions (groups, scenes, .). For contacting 2-way rocker switches 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. 3-wire connection technology (neutral wire required). With two 230 V extension inputs (up/down). With spread fastening Control elements: top/bottom push buttons Display elements: LED as orientation light or to display the switching status Nominal frequency: 50 Hz/60 Hz Outputs: 2x normally open contacts, non-floating Load type: blind operating mode Nominal current: 4 A Output voltage: 230 V~ Nominal power: 920 VA Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 71 mm x 71 mm x 45 mm Installation depth: 32 mm
