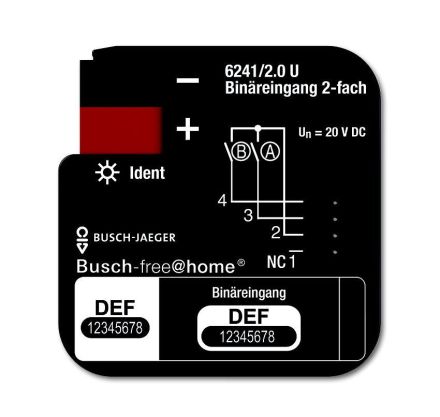

Busch-Jaeger 6241/2.0 U binary input 2-way, flush-mounted, for Busch-free@home®

In stock
SKU: 120725
€49.25
Into a basketIn the basketGo

Overview

Conventional buttons or auxiliary contacts can be connected to 2 channels. The information from the contact query can be used to control Busch-free@home® actuators or to record status information. The contact query voltage is provided by the binary input itself. The connection cables can be extended by a maximum of 10 m. Flush-mounted device for installation in a 60 mm device or junction box. The bus connection is made via the included bus terminal. Programming only when the bus voltage is applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalog.

PropertyValue
Mounting type:Flush-mounted
Number of inputs:2
Input voltage:20 V
Protection class (IP):IP20
KNX bus system:no
Radio bus system:yes
Powernet bus system:yes
LON bus system:yes
Other bus systems:free@home
With bus connection:yes
With LED display:yes
KNX radio bus system:yes
Removable bus module:no
Type of input voltage:pulsed

Characteristics

Number of inputs2
Input voltage20 V
HAB6241/2.0 U
ManufacturerBUSCH-JAEGER
HAN2CKA006220A0004
GTIN4011395180457
Other bus systemsFree@home
Bus system radio busYes
KNX bus systemNo
KNX radio bus systemYes
LON bus systemYes
Powernet bus systemYes
With bus connectionYes
With LED displayYes
Mounting typeFlush-mounted
IP protection)IP20
