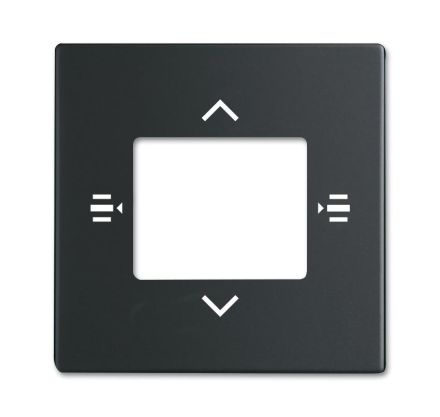

Busch-Jaeger 6108/61-885 central plate for control element 6-way black matt

Busch-Jaeger 6108/61-885 central plate for control element 6-way black matt

In stock

SKU: 318024

Price on request

€14.05

€0

Overview

Central plate for 6-way control element, matt black, Busch-Installationbus KNX, KNX button coupling, central plate for 6-way control element As cover for 6-way control element (6108/60). Protection class device: none Dimensions (H x W x D): 63 mm x 63 mm

Property	Value
Mounting type:	clamp fastening
Color:	black
RAL number (similar):	9005
Device height:	10.4 mm
Device width:	63 mm
Device depth:	63 mm
Labeling field:	without labeling field
Use:	other
With dust protection:	no
Mounting type:	flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	other
Support ring:	no
With print:	no
Material:	plastic
Material quality:	thermoplastic
Halogen-free:	yes
Surface finish:	matt
With Strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	1
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	33 mm
