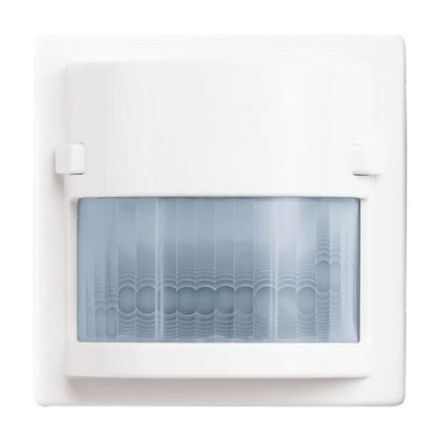

Busch-Wächter 180 UP Sensor Komfort II, studio white matt, Busch-Powernet KNX, control elements solo, Busch-Wächter 180 UP Sensor Komfort II with multi-lens for Busch installation bus KNX 6120/12-101, 6120/13 and Busch-Powernet KNX 6920/12, 6920/13 and 6920/40. Motion detector with up to 4 channels. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate etc.). Control elements: Slide switch for manual operation ON/AUTOMATIC/OFF (lockable) Detection range: front: 15 m, side: 5 m Opening angle: 180 ° Brightness limit: 5 lux to daytime operation Installation height: 0.8 m - 1.2 m alternatively: 2.5 m Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 63 mm x 63 mm x 28 mm Installation position: vertical
