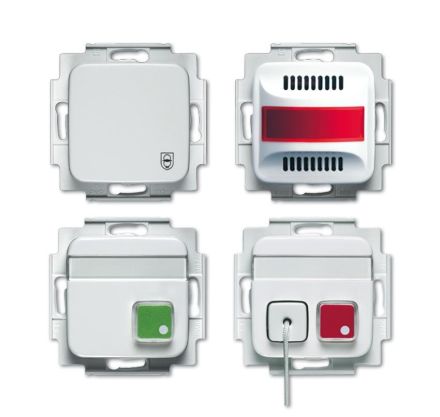

Call set for disabled toilets, alpine white, security technology, Busch-Infoline, call set for disabled toilets in accordance with DIN0834 For setting up an emergency call system for disabled toilets. Consisting of: power supply insert, alarm signal insert, signal button insert with pull cord and stop button insert. Call activation via pull cord button. Optical and acoustic emergency call signaling outside the disabled toilet. Reassurance light when the call is triggered. Stop button to cancel the emergency call. Labeling field: 51 x 10 mm. An emergency power supply is required for installations in accordance with DIN0834. Control elements: pull cord and stop button. Display elements: LED flashing light, buzzer and reassurance light. Nominal voltage: , +10 % / -10 % Secondary: , +28 V / -15 V Nominal frequency: 50 Hz/60 Hz Inputs: 1 Outputs: 1x normally open contact, non-potential Control/signal outputs: 1, changeover contact, potential-free, 42 V~/60 V-, 30 W/VA Protection class (device): IP 20 Temperature range (device): 5 °C to 40 °C
