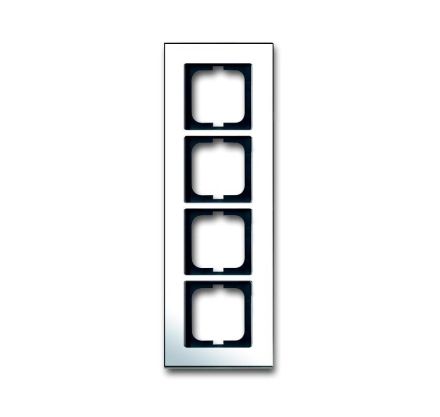

Busch-Jaeger 1724-826-101 cover frame, 4-way frame chrome

Busch-Jaeger 1724-826-101 cover frame, 4-way frame chrome

In stock

SKU: 120113

Price on request

€288.02

€0

Into a basketIn the basketGo

Overview

Cover frame, chrome, carat, frame carat, cover frame 4-way frame For vertical or horizontal installation. Protection class device: IP 20

Feature	Value
Height:	11 mm
Width:	320 mm
Material:	Metal
Mounting direction:	horizontal and vertical
Number of units:	4
Color:	Chrome
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	106 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	other
Surface:	galvanized
Surface finish:	glossy
Number of units horizontal:	4
Number of units vertical:	4
Fastening type:	clamp fastening
Hole diameter (opening):	71 mm
Installation width:	63 mm
Installation height:	63 mm
Transparent:	no
Number of switch inserts:	4
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch covers

HAB1724-826-101

Manufacturer

HAN2CKA001754A4363

GTIN4011395115299

Number of Units4

Number of units horizontal4

Number of units vertical4

Number of switch inserts4

Surface finishGlittering

Mounting typeClamp fastening

Width320 mm

Diameter bore (opening)71 mm

Installation width63 mm

Installation height63 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height11 mm

With hinged lidNo

With mounting frameNo

Mounting directionHorizontal and vertical

SurfaceGalvanized

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth106 mm

TransparentNo

MaterialMetal

Material qualityOther
