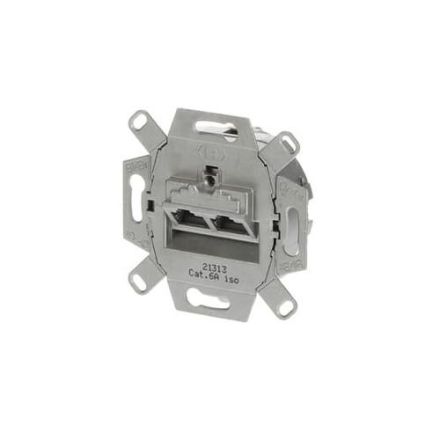

UAE junction box, RJ45, Cat. 6a iso, shielded, flush-mounted boxes and inserts, inserts for data communication, UAE junction box, RJ45, Cat. 6a iso, shielded 2 sockets, 8/8-pin With angled outlet and LSA insulation displacement terminals. RJ-45 connections for networks according to Cat. 6A, Class EA (10 Gbit/s / 500 MHz). Corresponds to Cat. 6A, Class EA in accordance with ISO/IEC 11801:2011-06. Connection marking A and B in accordance with TIA/EIA-568-B.2. Design in accordance with EN 60 603-7-51:2011-01. Shielding in accordance with DIN EN 55022, Class B. Up to 500 MHz on all wire pairs. Suitable for 10 Gigabit Ethernet. Suitable for PoE+ in accordance with IEEE 802.3at, 1000 mating cycles. Flexible cable feed without kinks from all sides. Housing earthing possible using a 6.3 mm flat plug connector on the back. Re-embedded tested. Suitable for mix-and-match use. Suitable for RJ 11, RJ 12 and RJ 45 plugs. For data cables with a diameter of 6-10 mm. For installation in cable ducts, flush-mounted device boxes and underfloor systems. For wires of AWG 24-22. Without spreader. Installation depth 31 mm.
