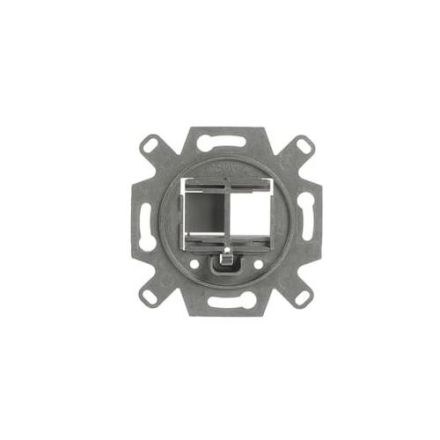

Busch-Jaeger 0219/12 flush-mounted mounting adapter

In stock

SKU: 121917

Price on request

€8.05

€0

Overview

Flush-mounted mounting adapter, flush-mounted mounting boxes and inserts, inserts for data communication, flush-mounted mounting adapter For holding one or two universal modules 0219. For flush-mounted installation. Suitable for TAE central plates 2539-21x and 1766-xxx. Device protection class: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	Silver
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Modular jack
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	Sand casting
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element
Support ring:	yes
With print:	no
Material:	metal
Material quality:	other
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
