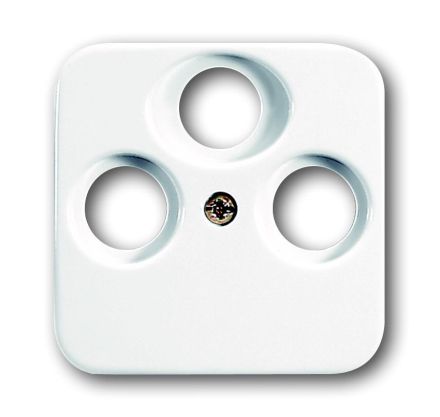

Busch-Jaeger 1743-03-214 Central plate, as cover for standard antenna sockets, alpine white

Busch-Jaeger 1743-03-214 Central plate, as cover for standard antenna sockets, alpine white

In stock

SKU: 118712

Price on request

€3.89

€0

Overview

Central plate, alpine white, SI/Reflex SI, covers for data communication, central plate as cover for standard antenna sockets with 3 connections. Radio/TV/SAT. With central fastening M3. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	white
RAL number (similar):	9010
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Sat
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Central plate
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	glossy
With Strain relief:	no
Luster terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	3
Sockets shielded:	no
Housing shielded:	no
Min. Depth of the device box:	40 mm
