Busch-Jaeger 1743/10-04-214 central plate, 50 x 50 mm alpine white

Busch-Jaeger 1743/10-04-214 central plate, 50 x 50 mm alpine white

In stock

SKU: 118721

Price on request

€6.60

€0

Overview

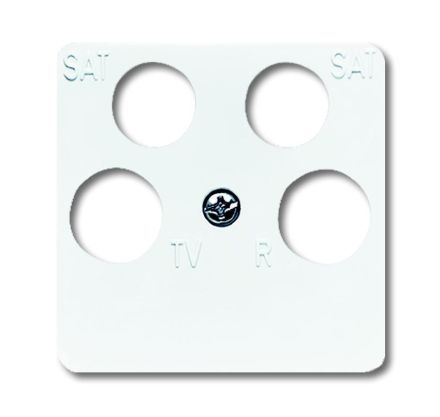

Central plate, alpine white, SI/Reflex SI, covers for data communication, central plate 50 x 50 mm As a cover for 4-way antenna socket SAT400/EAS/DC, EAS 405, 413 DAS from Ankaro. Can only be used with adapter ring item no. 1746-... . Version without hinged lid. Device protection class: IP 20

Property	Value
Mounting type:	Mounting with screw
Colour:	white
RAL number (similar):	9010
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Sat
With Dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Version of the Surface:	glossy
With strain relief:	no
Lamp terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	4
Shielded sockets:	no
Shielded housing:	no
Min. Depth of the device box:	40 mm
