Busch-Jaeger 1743/10-04-866 central plate stainless steel

In stock

SKU: 317981

Price on request

€26.17

€0

Overview

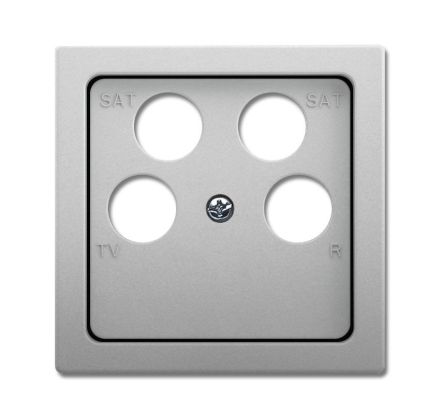

Central plate, stainless steel, pure stainless steel, covers for data communication, central plate as cover for 4-way antenna socket SAT400/EAS/DC, EAS 405, 413 DAS from Ankaro. Surface painted plastic. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Colour:	Stainless steel
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Sat
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	4
Sockets shielded:	no
Housing shielded:	no
Min. depth of device box:	40 mm
