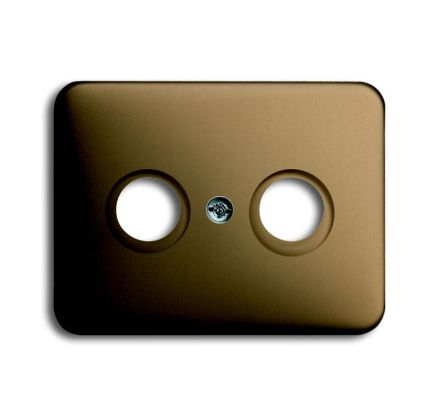

Busch-Jaeger 1743-21 central plate, as cover for standard antenna sockets, bronze

In stock

SKU: 121680

Price on request

€11.75

€0

Overview

Central plate, bronze, alpha, covers for data communication, central plate as cover for standard antenna sockets with 2 connections. According to DIN 45330. With central fastening M3. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Colour:	Bronze
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Sat
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Central plate
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Aluminium
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	3
Sockets shielded:	no
Housing shielded:	no
Min. depth of device box:	40 mm
