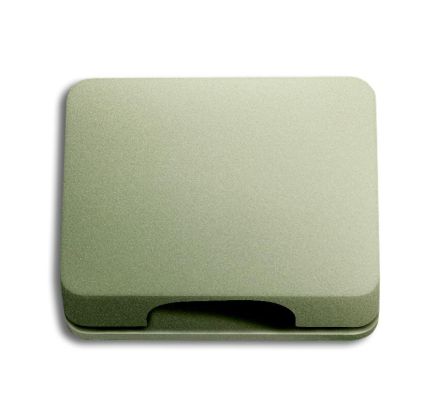

Busch-Jaeger 1746-260 FN central plate palladium

In stock
SKU: 121642
€18.31
Into a basketIn the basketGo

Overview

Central plate, palladium, alpha, covers for data communication, central plate For TAE inserts. For UAE/TAE inserts. For loudspeaker connection boxes. Suitable for item no. 0248/0x-101. For data modules. Suitable for item no. 0219/12 and 0219/13. For modular connection boxes with 90° RJ45 outlet from Telegärtner (series MJ and WE). Protection class of device: IP 20

PropertyValue
Mounting type:Mounting with screw
Colour:Other
Device height:71 mm
Device width:71 mm
Device depth:32 mm
Labeling field:without labeling field
Use:TAE
With dust protection:no
Mounting type:Flush-mounted
Surface:anodised
With hinged lid:yes
Suitable for protection class (IP):IP20
Composition:Control element
Support ring:no
With print:no
Material:metal
Material quality:aluminium
Halogen-free:yes
Surface finish:matt
With strain relief:no
Lustre terminal:no
Number of modules (with modular design):1
Transparent:no
Outlet direction:straight
With sockets/couplings:no
Sockets shielded:no
Housing shielded:no
Min. depth of the device box:40 mm

Characteristics

HAB1746-260 FN
ManufacturerBUSCH-JAEGER
HAN2CKA001710A3311
GTIN4011395005675
Number of modules (for modular construction)1
Surface finishFrosted
Outlet directionStraight
Mounting typeFastening with screw
Label fieldWithout label field
Shielded socketsNo
ColorOther
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width71 mm
Device height71 mm
Device depth32 mm
Halogen freeYes
Lamp terminalNo
Min. depth of the device box40 mm
With printNo
With bushings/couplingsNo
With hinged lidYes
With dust protectionNo
With strain reliefNo
Mounting typeFlush-mounted
SurfaceAnodized
Support ringNo
TransparentNo
UseTAE
MaterialMetal
Material qualityAluminum
CompilationControl element
