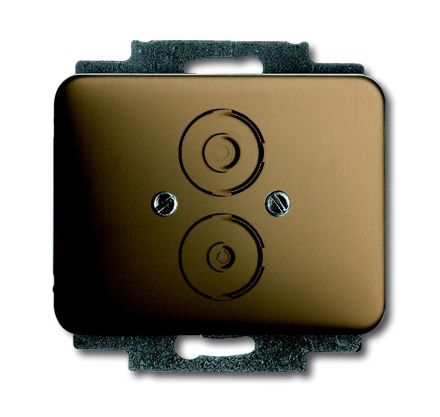

Busch-Jaeger 1748-21 central disc bronze

In stock

SKU: 121681

Price on request

€21.22

€0

Overview

Central plate, bronze, alpha, covers for data communication, central plate for covering small sockets and round connectors with screw cap M 16x0.75 (can be installed in base insert) in accordance with DIN 41524, 41529, 45322, 45327, 45328 and 45329. Breakout openings 6, 8, 18 mm. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	Bronze
Device height:	71 mm
Device width:	71 mm
Device depth:	32 mm
Labeling field:	without labeling field
Use:	for data connection housing
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	anodized
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	yes
With print:	no
Material:	metal
Material quality:	aluminium
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
