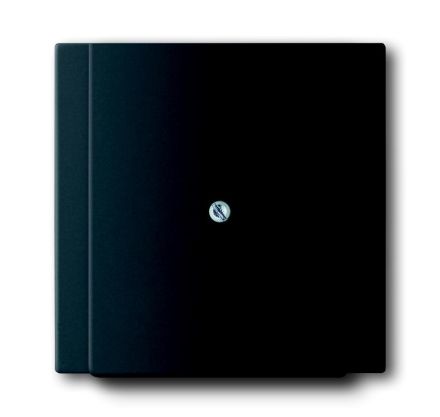

Busch-Jaeger 1749-775 central plate, with support ring black matt

Busch-Jaeger 1749-775 central plate, with support ring black matt

In stock

SKU: 119323

Price on request

€24.66

€0

Overview

Central plate, matt black, impulse, covers for data communication, central plate with support ring As a cover for cable outlet. With strain relief (without terminal block). Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	black
RAL number (similar):	9005
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Labeling field:	without labeling field
Use:	Cable outlet
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	glossy
With Strain relief:	yes
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
