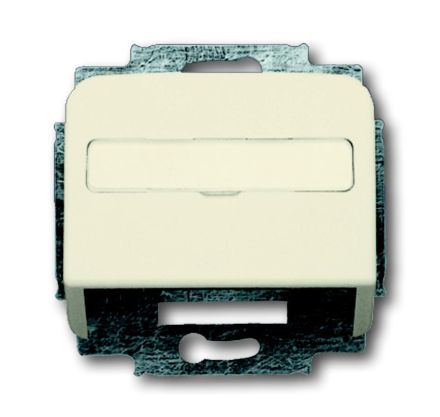

Busch-Jaeger 1758-212 central plate, with white support ring

Busch-Jaeger 1758-212 central plate, with white support ring

In stock

SKU: 120831

Price on request

€11.03

€0

Overview

Central plate, white, SI/Reflex SI, covers for data communication, central plate with support ring for communication connectors. With labeling field 53.7 x 11.7 mm. Without spreader. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	white
RAL number (similar):	1013
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Labeling field:	with labeling field
Use:	for data connection housing
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element with upper housing section
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	glossy
With Strain relief:	no
Luster terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	angled
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. Depth of the device box:	40 mm
