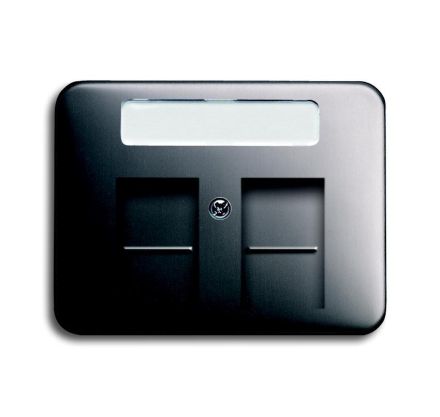

Busch-Jaeger 1800-20 central plate, with label field platinum

Busch-Jaeger 1800-20 central plate, with label field platinum

In stock

SKU: 121712

Price on request

€18.01

€0

Overview

Central plate, platinum, alpha, covers for data communication, central plate with labelling field for 2 modular jack inserts with opening slide. Only suitable for item no. 1810, 1812, 1814, 1816, 1818, 1819 and 1820. Size of the labelling field: 41.5 x 10 mm. Protection class of device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	Platinum
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	with label field
Use:	Modular jack
With dust protection:	yes
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
