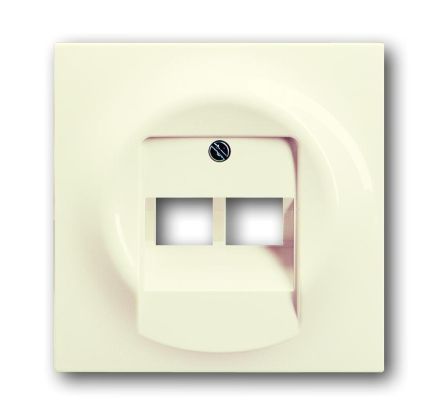

Busch-Jaeger 1803-02-72 central plate, 2-way ivory/white

In stock
SKU: 119309
€10.83
Into a basketIn the basketGo

Overview

Central plate, ivory/white, impulse, covers for data communication, central plate 2-way As a cover for UAE connection boxes. Item no. 0214, 0215 (category 3/ISDN), 0217-xxx, 0218-xxx, 0218/12-xxx (category 5e/Cat. 6 A ISO/data technology) and comparable types from Rutenbeck. Brand-Rex (WAEGV 8/8 EKR/EK). AMP (NETCONNECT 5E). BTR (E-DAT C6, E-DAT design, UAE design and IAE design). cti (cti-wire 2.8 Cat.6). Telegärtner (AMJ 45, UMJ 45). With angled outlet. Protection class of device: IP 20

PropertyValue
Mounting type:Mounting with screw
Color:beige
RAL number (similar):1013
Device height:71 mm
Device width:71 mm
Device depth:32 mm
Labeling field:without labeling field
Use:UAE/IAE
With dust protection:no
Mounting type:Flush-mounted
Surface:untreated
With hinged lid:no
Suitable for protection class (IP):IP20
Composition:Control element
Support ring:no
With print:no
Material:Plastic
Material quality:Thermoplastic
Halogen-free:yes
Version of the Surface:glossy
With strain relief:no
Lustre terminal:no
Number of modules (with modular design):1
Transparent:no
Outlet direction:angled
With sockets/couplings:no
Suitable for number of sockets/couplings:2
Sockets shielded:no
Housing shielded:no
Min. depth of the device box:40 mm

Characteristics

HAB1803-02-72
ManufacturerBUSCH-JAEGER
HAN2CKA001753A0083
GTIN4011395082935
Number of modules (for modular construction)1
Surface finishGlittering
Outlet directionAslant
Mounting typeFastening with screw
Label fieldWithout label field
Shielded socketsNo
ColorBeige
Suitable for number of sockets/couplings2
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width71 mm
Device height71 mm
Device depth32 mm
Halogen freeYes
Lamp terminalNo
Min. depth of the device box40 mm
With printNo
With bushings/couplingsNo
With hinged lidNo
With dust protectionNo
With strain reliefNo
Mounting typeFlush-mounted
SurfaceUntreated
RAL number (similar)1013
Support ringNo
TransparentNo
UseUAE/IAE
MaterialPlastic
Material qualityThermoplastic
CompilationControl element
