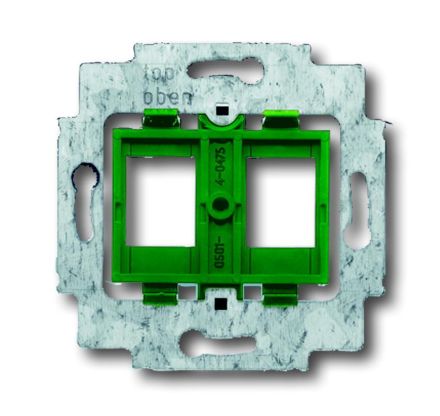

Busch-Jaeger 1810 support ring, with green base

In stock

SKU: 122004

Price on request

€5.29

€0

Overview

For 2 modular jack inserts. For system: CommScope (AVAYA / AT&T / Lucent Technologies), GigaSPEED, PowerSUM, 360 GS 10E to MGS 600-BK, M1 BH-xx, MPS 100E-xx. With R&M adapter R310694 suitable for R&M connection modules R305111, R305112, R305113 and R305114. Pitch: (WxH) approx. 16.9 x 17.9 mm. Without spreader. Check compatibility with other manufacturers not listed according to the specified pitch. You can find further information in the communications systems manual or on the Internet.

Property	Value
Mounting type:	Mounting with screw
Color:	green
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Modular jack
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
