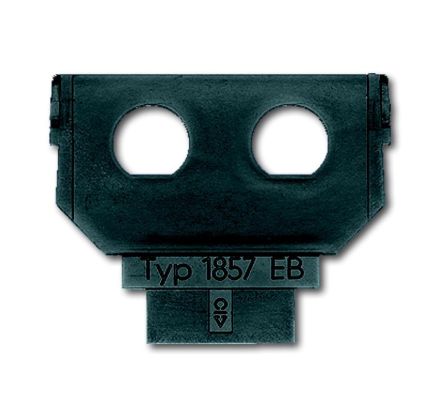

Busch-Jaeger 1857 EB base, 2x BNC/TNC cable mounting socket

In stock

SKU: 120033

Price on request

€3.97

€0

Overview

Socket, data communication, data communication system (DKS), socket 2x BNC/TNC cable installation socket For central plate and AP housing 1758-... For communication connectors. Protection class device: IP 20

Property	Value
Mounting type:	other
Color:	anthracite
RAL number (similar):	7021
Device height:	71 mm
Device width:	71 mm
Device depth:	32 mm
Labeling field:	without labeling field
Use:	BNC/TNC
With dust protection:	no
Mounting type:	other
Surface:	untreated
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Control element
Support ring:	no
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
With Strain relief:	no
Luster terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	angled
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. Depth of the device box:	40 mm
