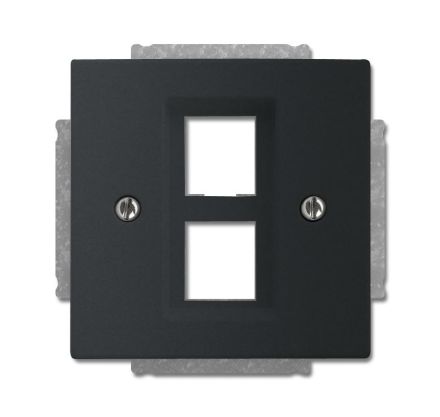

Busch-Jaeger 2561-02-885 central plate, with support ring black matt

Busch-Jaeger 2561-02-885 central plate, with support ring black matt

In stock

SKU: 317639

Price on request

€13.33

€0

Overview

Central plate, matt black, future linear, covers for data communication, central plate Modular Jack For 2 modular jack inserts. Suitable for item no. 0210 and 0211. Without spreader. Protection class device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	black
RAL number (similar):	9005
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Modular jack
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element with central cover plate
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
With Strain relief:	no
Luster terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. Depth of the device box:	40 mm
