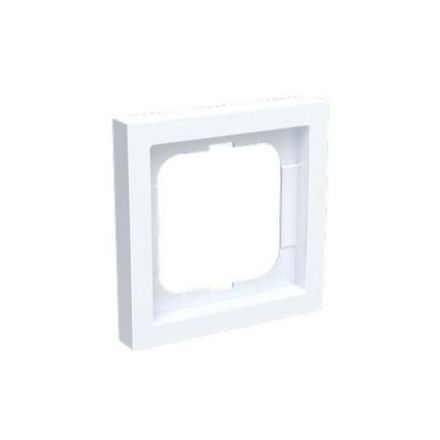

Busch-Jaeger 1721-184K future® linear cover frame, 1-way frame studio white

In stock

SKU: 119665

Price on request

€2.97

€0

Overview

future linear cover frame, studio white, future linear, frame future linear, future linear cover frame 1-way frame with small corner radii for cut duct covers. Protection class device: IP 20

Property	Value
Height:	11 mm
Width:	80 mm
Material:	plastic
RAL number (similar):	9016
Mounting direction:	horizontal and vertical
Number of units:	1
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	80 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	1
Number of units vertical:	1
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Installation width:	63 mm
Installation height:	63 mm
Transparent:	no
Number of switch inserts:	1
With mounting frame:	no
Impact resistance:	IK03
