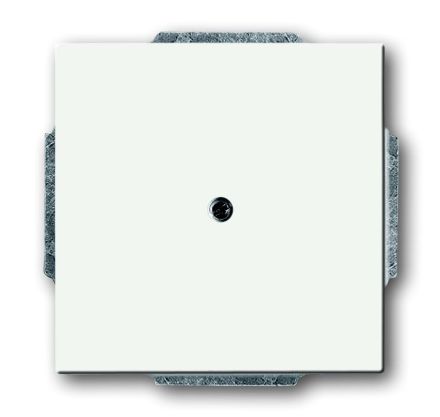

Busch-Jaeger 1742-884 blind central plate, with support ring studio white matt

Busch-Jaeger 1742-884 blind central plate, with support ring studio white matt

In stock

SKU: 119983

Price on request

€10.63

€0

Overview

Blind central plate, studio white matt, future linear, covers for data communication, blind central plate with support ring Protection class device: IP 20

Property	Value
Mounting type:	Claw/screw fastening
Color:	white
RAL number (similar):	9016
Device height:	32 mm
Device width:	71 mm
Device depth:	71 mm
Labeling field:	without labeling field
Use:	blank cover
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element with central cover plate
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Design of the Surface:	matt
With strain relief:	yes
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
