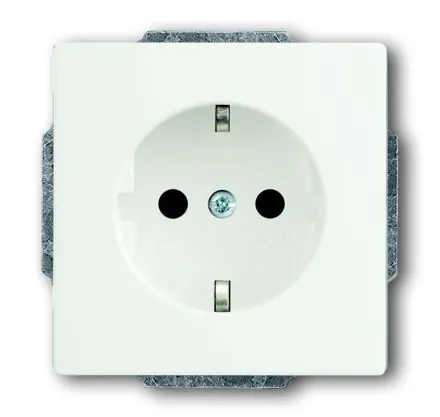

SCHUKO socket insert, studio white matt, future linear, sockets, SCHUKO socket insert with increased contact protection With plug connection. 2-pole (2 P + E) Nominal current: 16 A Protection class device: IP 20
| Property | Value |
| RAL number (similar): | 9016 |
| Number of units: | 1 |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With Fine-wire fuse: | no |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | painted |
| Surface finish: | matt |
| Number of modules (with modular design): | 1 |
| Device width: | 12 mm |
| Device height: | 32 mm |
| Device depth: | 71 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK03 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With Signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 40 mm |
