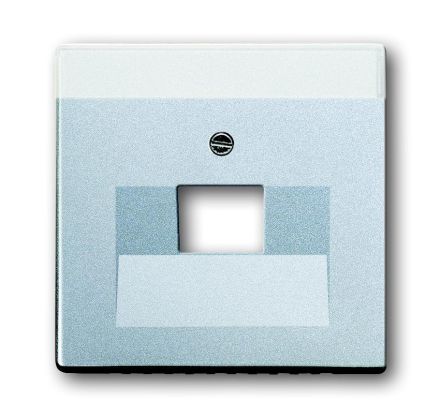

Busch-Jaeger 1803-83 central plate aluminum silver

In stock
SKU: 119901
€10.67
Into a basketIn the basketGo

Overview

Central plate, aluminum silver, future linear, covers for data communication, central plate As a cover for UAE connection boxes. Item no. 0213 (category 3/ISDN), 0216-101, 0218/11-101 (category 5e/6 data technology) and comparable types from Rutenbeck. For WLAN access points 8186/31 and 8186/41. Brand-Rex (WAEGV 8 EKR/EK). BTR (UAE design and IAE design). Telegärtner (AMJ 45, UMJ 45). With angled outlet. With labeling field. Size of the labeling field: 60 x 9 mm. Protection class of device: IP 20

PropertyValue
Mounting type:Mounting with screw
Color:Aluminum
RAL number (similar):9006
Device height:32 mm
Device width:71 mm
Device depth:71 mm
Labeling field:with labeling field
Use:UAE/IAE
With dust protection:no
Mounting type:Flush-mounted
Surface:painted
With hinged lid:no
Suitable for protection class (IP):IP20
Composition:Control element
Support ring:no
With print:no
Material:Plastic
Material quality:Thermoplastic
Halogen-free:yes
Version of the Surface:matt
With strain relief:no
Lamp terminal:no
Number of modules (with modular design):1
Transparent:no
Outlet direction:angled
With sockets/couplings:no
Suitable for number of sockets/couplings:1
Sockets shielded:no
Housing shielded:no
Min. Depth of the device box:40 mm

Characteristics

HAB1803-83
ManufacturerBUSCH-JAEGER
HAN2CKA001710A3674
GTIN4011395074633
Number of modules (for modular construction)1
Surface finishFrosted
Outlet directionAslant
Mounting typeFastening with screw
Label fieldWith label field
Shielded socketsNo
Suitable for number of sockets/couplings1
Suitable for protection class (IP)IP20
Housing shieldedNo
Device width71 mm
Device height32 mm
Device depth71 mm
Halogen freeYes
Lamp terminalNo
Min. depth of the device box40 mm
With printNo
With bushings/couplingsNo
With hinged lidNo
With dust protectionNo
With strain reliefNo
Mounting typeFlush-mounted
SurfacePainted
RAL number (similar)9006
Support ringNo
TransparentNo
UseUAE/IAE
MaterialPlastic
Material qualityThermoplastic
CompilationControl element
