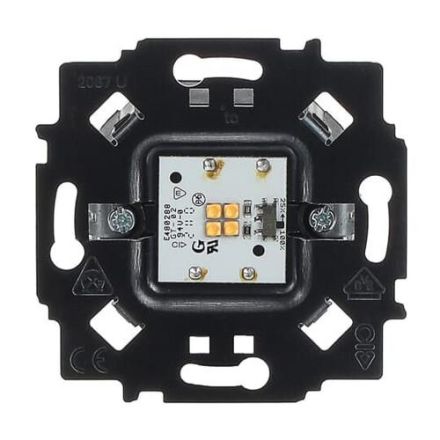

Busch-Jaeger 2067/11 U LED-UP insert, power module

In stock
SKU: 119110
€43.23
Into a basketIn the basketGo

Overview

LED flush-mounted insert, flush-mounted installation boxes and inserts, inserts for LED light/information light/light signal, LED flush-mounted insert power module warm white For Busch-iceLight wall and ceiling modules type 2068/xx. Particularly bright, e.g. for information display. Color temperature: 2,700 K (warm white) Not dimmable. Light intensity can be switched between 100 and 25% using the service switch on the front. Mains power consumption: 5 W Nominal voltage: 230 V~, + 10 % / - 10 % LED current consumption: 350 mA (secondary) Secondary: SELV Nominal frequency: 50 Hz/60 Hz Device protection class: IP 20 Device temperature range: 0 °C to 40 °C EN 62031 /0715-5 dated Jan. 2009

PropertyValue
Color temperature:2700 K
Protection class (IP):IP20
Length:71 mm
Width:71 mm
Height:32 mm
Shape:square
Color:white
Number of LEDs:4
Suitable for general lighting:yes
Voltage type:AC

Characteristics

HAB2067/11 U
ManufacturerBUSCH-JAEGER
HAN2CKA001510A0001
GTIN4011395132715
Width71 mm
ColorWhite
Color temperature2700K
ShapeSquare
Height32 mm
Length71 mm
IP protection)IP20
Voltage typeAC
