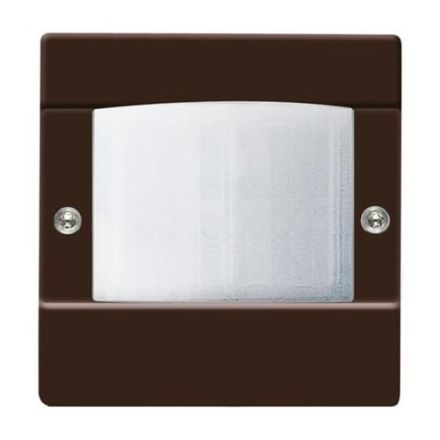

Busch-Wächter 180 UP sensor for all-weather 44, brown, flush-mounted, water-protected, special plug-in devices, other, Busch-Wächter 180 UP sensor for all-weather 44 with combination lens For automatic switching of consumers depending on movement and brightness. For outdoor use. For detection down to the ground. For Busch universal relay insert 6401 U-102. IP 44 only in conjunction with frame All-weather 44. Monitoring density: 40 sectors with 160 switching segments. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. With screw fastening. Detection range: front: 15 m, side: 10 m Detection range 2: front: 9 m, side: 4 m Opening angle: 180 ° Brightness limit: 5 lux to daytime operation Installation height: 0.8 m - 1.2 m alternatively: 2.5 m Sensor protection class: IP 44 Device temperature range: -25 °C to 55 °C Installation position: vertical
