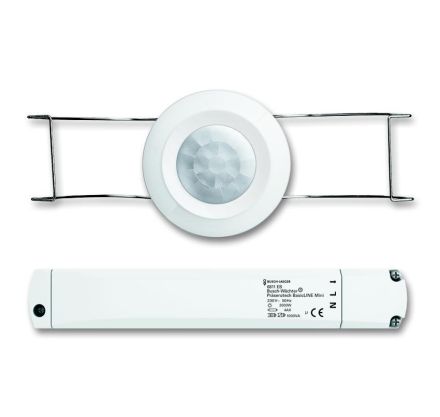

Busch-Jaeger 6811 EB Busch-Wächter® Presence tech BasicLINE mini alpine white

Busch-Jaeger 6811 EB Busch-Wächter® Presence tech BasicLINE mini alpine white

In stock

SKU: 121129

Price on request

€93.50

€0

Overview

Busch-Wächter Presence tech BasicLINE mini, alpine white, motion/presence detector, presence detector, Busch-Wächter Presence tech BasicLINE mini For brightness and movement-dependent switching of lighting. Detection range (at 3 m installation height) circular, up to 6 m in diameter. Low installation height thanks to separate sensor/actuator concept. Detection sensitivity continuously adjustable. With brightness-independent test mode for evaluating the detection range. With detection display in test mode. Ceiling installation via integrated spring clip. Monitoring density: 19 sectors with 76 switching segments. Switch-off delay: approx. 1 min. - 15 min. or short-term pulse adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz Outputs: 1x normally open contact, non-potential bound Load type: 230 V incandescent lamps Nominal power: 2000 W Load type: energy saving lamps Nominal power: 7 - 400 W Load type: fluorescent lamps Nominal current: 4 AX, at cos 0.5 Nominal power: 1000 W/VA Opening angle: 360 ° Brightness limit: 10 Lux - 1000 Lux , day operation Mounting height: 2 m - 5 m Protection class device: IP 20 Protection class sensor: IP 40 Temperature range device: 0 °C to 45 °C Installation depth: 77 mm IEC 60669-2-1

Property	Value
Depth:	80 mm
Width:	38 mm
Height:	38 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	other
Response brightness:	10 to 1000 lx
Protection class (IP):	IP20
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	3 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	15 min
Creep-under protection/rear field monitoring:	yes
Temperature:	0 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence range:	1.75 m²
Max. frontal range:	3 m
Max. Inrush current:	80 A
Sensor type:	passive infrared
Optimal installation height:	2 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	6 m
Number of switching zones:	1
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no
Min. inrush current:	0.01 A
Diameter:	38 mm
Installation width:	27 mm
Installation depth:	77 mm
Installation length:	139 mm
Installation diameter:	32 mm
Min. depth of device box:	77 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones1

Response brightness10 to 1000 lx

Forced shutdownNo

Max. inrush current80 A

Scanning angle360 °

Forced switching onNo

Max. presence range1.75 m²

HAB6811 EB

Manufacturer

HAN2CKA006800A2508

GTIN4011395133323

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width38 mm

Diameter38 mm

Installation width27 mm

Installation diameter32 mm

Installation length139 mm

Installation depth77 mm

Detection field diameter on floor6m

Color

Remote controllableNo

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height38 mm

Constant light controlNo

Max. duty cycle15 minutes

Max. range frontal3m

Max. range to one side3m

Max. switching capacity2000W

Min. duty cycle60s

Min. depth of the device box77 mm

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature0 to 45 °C

Depth80 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
