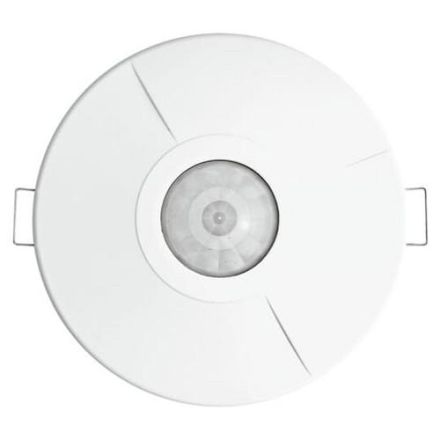

Busch-Jaeger 6814 U Busch-Wächter® Presence tech BasicLINE alpine white

Busch-Wächter Presence tech BasicLINE, alpine white, motion/presence detector, presence detector, Busch-Wächter Presence tech BasicLINE For switching lights depending on brightness and movement. Detection area (at 3 m installation height) circular, up to 8 m in diameter. For semi- and fully automatic operation. Additional on/off option via button input. Adjustment of the detection area possible using the enclosed masking elements. With brightness-independent test mode for evaluating the detection area. With detection display in test mode. Installation option in combination with built-in and device boxes. Ceiling installation via integrated spring clips. Setting elements accessible from the front. Low installation height (31 mm). Monitoring density: 32 sectors with 128 switching segments. Switch-off delay: approx. 5 s - 30 min. or short-term pulse adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-potential Load type: 230 V incandescent lamps Nominal power: 2000 W Load type: energy-saving lamps Nominal power: 7 - 400 W Load type: fluorescent lamps Nominal current: 4 AX, at cos 0.5 Nominal power: 1000 W/VA Opening angle: 360 ° Brightness limit: 10 Lux - 2000 Lux Installation height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): 0 °C to 45 °C Dimensions (H x W x D): 111 mm x 111 mm x 59 mm Installation depth: 41 mm 60669-2-1
