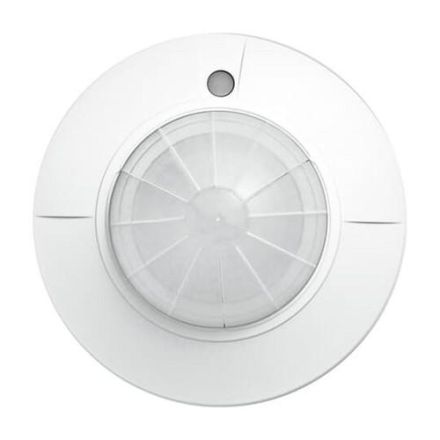

Busch-Jaeger 6818 U Busch-Wächter® Presence tech BasicLINE Corridor alpine white

Busch-Wächter Presence tech BasicLINE Corridor, alpine white, motion/presence detector, presence detector, Busch-Wächter Presence tech BasicLINE Corridor For brightness and movement-dependent switching of lighting. Detection area (at 2.5 m installation height) circular, up to 24 m in diameter. Additional on/off option via button input. Adjustment of the detection area possible using the enclosed masking elements. With brightness-independent test mode for evaluating the detection area. With detection display in test mode. With automatic passage detection. With automatic sensitivity adjustment. Can be installed in combination with built-in and device boxes. Ceiling installation using the enclosed dust protection box. Setting elements accessible from the front. Monitoring density: 215 sectors with 860 switching segments. Switch-off delay: approx. 10 s - 30 min. or short-term pulse adjustable. Can be remotely controlled via IR service hand transmitter 6843. Can be used outdoors in combination with surface-mounted housing 6888. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-potential Load type: 230 V incandescent lamps Nominal power: 2000 W Load type: energy-saving lamps Nominal power: 7 - 400 W Load type: fluorescent lamps Nominal current: 4 AX, at cos 0.5 Nominal power: 1000 W/VA Opening angle: 360 ° Brightness limit: 10 Lux - 2000 Lux Installation height: 2 m - 3 m Protection class (device): IP 40 Temperature range (device): -20 °C to 45 °C Dimensions (H x W x D): 110 mm x 110 mm x 70 mm Installation depth: 48 mm IEC 60669-2-1
