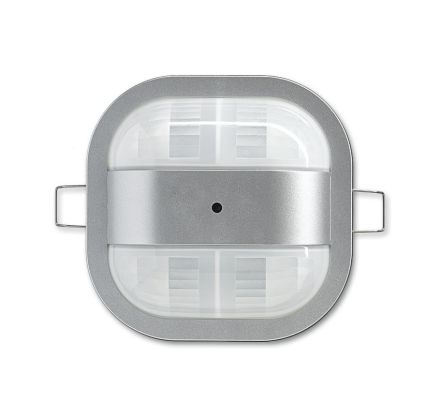

Busch-Jaeger 6819/51-183 Busch presence detector Corridor BT, relay, 30 meters aluminum silver

Busch presence detector Corridor BT, relay, aluminum silver, presence detector, presence detector, Busch presence detector Corridor BT, relay 30 meter master presence detector with mixed light measurement. For switching lights depending on brightness and motion. With Bluetooth interface for parameterization and operation. All setting options can be adjusted via smartphone or tablet. Light control via smartphone or tablet app. With high-load relay for LED operation. Detection area (at a mounting height of 3 m): rectangular Walking people: across the detector 30 mx 3 m, frontally 20 mx 3 m. Extension of the detection area through master/slave combination. Installation height 27 mm. For semi-automatic, comfort and fully automatic operation. Additional on/off option via button input. With permanent light / permanent off function (8 hours), can be activated via intelligent extension input. With selectable presence simulation when not present. With integrated storage of the duty cycle (energy monitor). With brightness-independent test mode for evaluating the detection area. With teach-in function for the brightness switching threshold, IR service handheld transmitter required. With detection display in test mode. Ceiling installation via integrated spring clip. Anti-twist protection via additional quick clamping. Adjustment elements accessible from the front. Monitoring density: 92 sectors with 368 switching segments. Individual shutdown and sensitivity adjustment of individual sensors possible. Switch-off delay: approx. 1 min. - 30 min. or short-term pulse adjustable. With selectable dynamic switch-off delay. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Controls: 2 controls for setting the brightness switching threshold and run-on time. Display elements: LED detection and status display. Nominal voltage: 230 V~, +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: 230 V incandescent lamps Nominal power: 2300 W Load type: 230 V~ LEDi Nominal power: 200 W/VA Load type: fluorescent lamps Nominal current: 10 AX, at cos 0.9 Opening angle: 360 ° Brightness limit: 5 lux - 2000 lux Installation height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 94 mm x 94 mm x 76 mm Installation depth: 49 mm 60669-2-1
