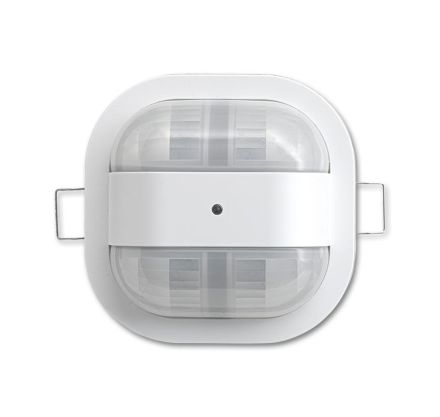

Busch-Jaeger 6819/58-24 Busch presence detector Corridor, slave, 30 meters studio white matt

Busch-Jaeger 6819/58-24 Busch presence detector Corridor, slave, 30 meters studio white matt

In stock

SKU: 318009

Price on request

€114.33

€0

Overview

Busch presence detector Corridor, Slave, studio white matt, motion/presence detector, presence detector, Busch presence detector Corridor, Slave 24 meter slave presence detector to extend the detection range of master presence detectors. Detection range (at 3 m installation height): rectangular Walking people: across the detector 24 mx 3 m, frontal/lengthways to the detector 14 mx 3 m. Installation height 27 mm. Ceiling recessed installation via integrated spring clip. Anti-twist protection via additional quick-clamping. Monitoring density: 92 sectors with 368 switching segments. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Nominal voltage: 230 V~, +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Opening angle: 360 ° Mounting height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 94 mm x 94 mm x 76 mm Installation depth: 49 mm

Property	Value
Depth:	76 mm
Width:	94 mm
Height:	94 mm
Version:	Presence detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9016
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP40
Voltage type:	AC
Max. range to one side:	1.5 m
Scan angle:	360 °
Suitable for wall mounting:	no
Creep-by protection/rear field monitoring:	yes
Temperature:	-5 to 45 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. Presence area:	72 m²
Max. frontal range:	12 m
Sensor type:	passive infrared
Optimal installation height:	2 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Number of switching zones:	368
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial Treatment:	no
Installation depth:	49 mm
Installation diameter:	68 mm
Min. depth of device box:	49 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones368

Response brightness5 to 2000 lx

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

Max. presence range72 m²

HAB6819/58-24

Manufacturer

HAN2CKA006800A2754

GTIN4011395217771

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width94 mm

Installation diameter68 mm

Installation depth49 mm

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height94 mm

Constant light controlNo

Max. range frontal12m

Max. range to one side1.5m

Min. depth of the device box49 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2m

RAL number (similar)9016

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 45 °C

Depth76 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
