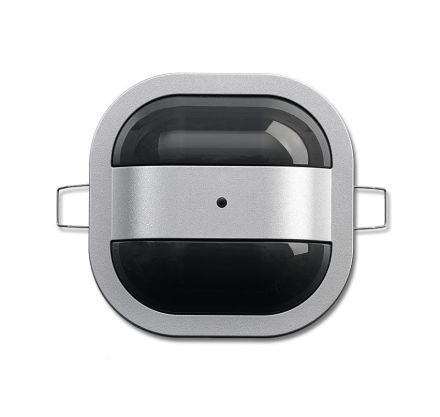

Busch-Jaeger 6819/68-183 Busch-Presence detector Compact, Slave, 8 meters aluminum silver

Busch-Jaeger 6819/68-183 Busch-Presence detector Compact, Slave, 8 meters aluminum silver

In stock

SKU: 317996

Price on request

€78.03

€0

Overview

Busch-Presence detector Compact, Slave, aluminum silver, motion/presence detector, presence detector, Busch-Presence detector Compact, Slave 8 meter slave presence detector to extend the detection range of master presence detectors. Detection range (at 3 m installation height): circular: seated people: up to 6.5 m, walking people: up to 8 m. Installation height 23 mm. Ceiling installation via integrated spring clip. Anti-twist protection via additional quick-clamping. Monitoring density: 48 sectors with 496 switching segments. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Nominal voltage: 230 V~, +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Opening angle: 360 ° Mounting height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 94 mm x 94 mm x 72 mm Installation depth: 49 mm

Property	Value
Depth:	72 mm
Width:	94 mm
Height:	94 mm
Version:	Presence detector
Color:	Aluminum
Nominal voltage:	230 V
RAL number (similar):	9006
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 2000 lx
Protection class (IP):	IP40
Voltage type:	AC
Max. range to one side:	4 m
Scan angle:	360 °
Suitable for wall mounting:	no
Min. duty cycle:	60 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-5 to 45 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. presence range:	50 m²
Max. Frontal range:	4 m
Sensor type:	passive infrared
Optimal installation height:	2 m
Surface finish:	matt
Surface:	painted
Material quality:	thermoplastic
Detection field diameter on floor:	8 m
Number of switching zones:	496
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Installation depth:	49 mm
Installation diameter:	68 mm
Min. depth of device box:	49 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones496

Response brightness5 to 2000 lx

Forced shutdownNo

Scanning angle360 °

Forced switching onNo

Max. presence range50 m²

HAB6819/68-183

Manufacturer

HAN2CKA006800A2784

GTIN4011395218143

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Width94 mm

Installation diameter68 mm

Installation depth49 mm

Detection field diameter on floor8m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height94 mm

Constant light controlNo

Max. duty cycle30 min

Max. range frontal4m

Max. range to one side4m

Min. duty cycle60s

Min. depth of the device box49 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfacePainted

Optimal mounting height2m

RAL number (similar)9006

IP protection)IP40

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 45 °C

Depth72 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
