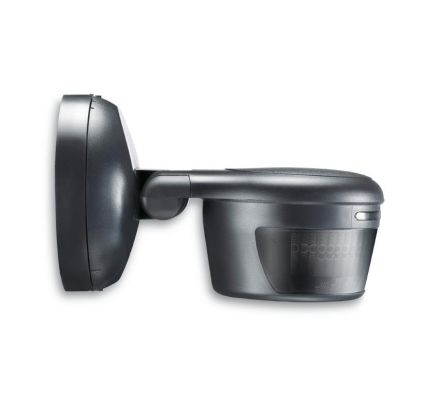

Busch-Jaeger 6845/11 AGM-35 Busch-Wächter® 220 ProfessionalLINE, without IR hand-held transmitter anthracite

Busch-Wächter 220 ProfessionalLINE, anthracite, motion/presence detector, Busch-Wächter AP, Busch-Wächter 220 ProfessionalLINE without IR hand-held transmitter Electronic motion detector for detecting thermal movements. With detection and operating mode display. With floor and rear field monitoring. With level compensation: +/- 30°. With profile lens for best detection. Detection sensitivity can be selected in 3 levels. Monitoring density: 84 sectors with 336 switching segments. All functions microprocessor-controlled. Continuous light (4 hours) and presence simulation can be activated via IR hand-held transmitter. With automatic range stabilization. With automatic interference suppression. With automatic glare protection. With brightness-independent test mode for evaluating the detection area. Additional switch-on option via break button. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic, capacitive and inductive Nominal current: 16 AX, at cos 0.6 Nominal power: 3680 W/VA Detection range: front: 16 m, side: 16 m Opening angle: 220 ° Brightness limit: 0.5 lux - 300 lux, daytime operation Mounting height: 2.5 m Protection class (device): IP 55 Temperature range (device): -25 °C to 55 °C Dimensions (H x W x D): 97 mm x 97 mm x 159 mm
