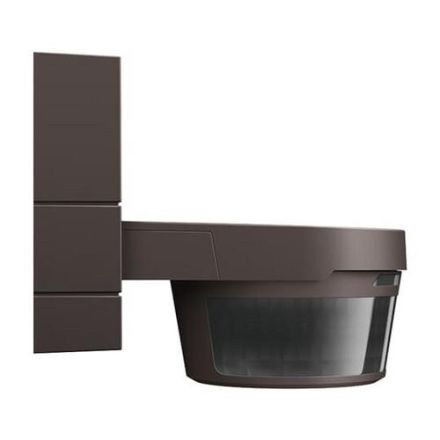

Busch-Jaeger 6867 AGM-201 Busch-Wächter® 280 MasterLINE, incl. IR hand-held transmitter brown

Busch-Wächter 280 MasterLINE, brown, motion/presence detector, Busch-Wächter AP, Busch-Wächter 280 MasterLINE including IR hand-held transmitter Electronic motion detector for detecting heat movements. Can be remotely controlled via IR hand-held transmitter 6841-101 (included in delivery). Remotely parameterizable via IR service hand-held transmitter 6842-101. With detection and operating mode display. With floor and rear field monitoring. With profile lens for best detection. Detection sensitivity adjustable via IR service hand-held transmitter. Monitoring density: 110 sectors with 440 switching segments. With integrated dismantling difficulty. All functions microprocessor-controlled. Continuous light (4 hours) and presence simulation can be activated via IR hand-held transmitter. Reading in the current brightness value as switching threshold via IR hand-held transmitter. With automatic range stabilization. With automatic interference suppression. With automatic glare protection. With brightness-independent test mode for evaluating the detection area. Individual adjustment of the detection area using the enclosed, cut-to-size cover film. Additional switch-on option using the opening button. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic, capacitive and inductive Nominal current: 16 AX, at cos 0.6 Nominal power: 3680 W/VA Detection range: front: 16 m, side: 16 m Opening angle: 280 ° Brightness limit: 0.5 lux - 300 lux, daytime operation Mounting height: 2.5 m Protection class (device): IP 55 Temperature range (device): -25 °C to 55 °C Dimensions (H x W x D): 115 mm x 125 mm x 141 mm
