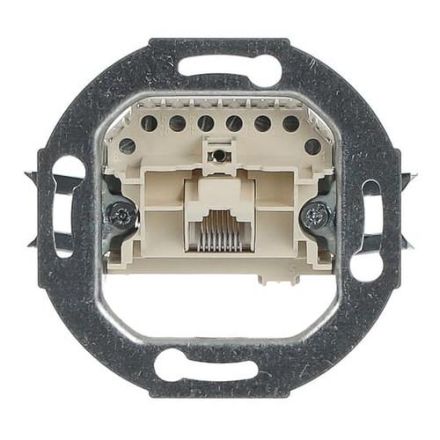

Busch-Jaeger 0213 UAE connection box, 1 socket, 8-pin

In stock

SKU: 121897

Price on request

€15.58

€0

Overview

UAE connection box, flush-mounted installation boxes and inserts, inserts for data communication, UAE connection box 1 socket, 8-pin with angled outlet. For 8-pin plugs, RJ 11/12, RJ 45, ISDN-capable, Cat. 3. Design according to IEC 60 603-7-2:2007. Screw contacts with spreader. Device protection class: IP 20

Property	Value
Designable:	yes
Category:	other
Surface-mounted:	no
Mounting type:	screws
Outlet direction:	angled
Sockets shielded:	no
Housing shielded:	no
Channel installation:	yes
Connector type:	RJ45 8(8)
Suitable for number Sockets/couplings:	1
Color coding:	no
Connection type:	screw
RAL number:	9010
Separate earthing connection:	no
Floor tank/underfloor installation:	no
With text field:	no
Separate cable strain relief:	no
With sockets/couplings:	no
Protection class (IP):	IP20
Color:	white
Mechanical coding:	no
With dust protection:	no
Mounting type shield connection:	screw
Composition:	Base element
Device width:	71 mm
Device height:	32 mm
Device depth:	71 mm
