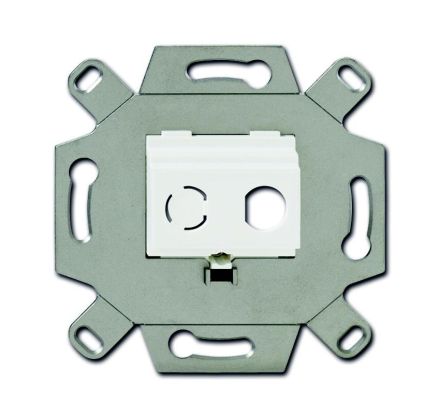

Busch-Jaeger 0262/12 communication adapter, for BNC-F feed-through sockets alpine white

Busch-Jaeger 0262/12 communication adapter, for BNC-F feed-through sockets alpine white

In stock

SKU: 121933

Price on request

€8.10

€0

Overview

Communication adapter, alpine white, flush-mounted mounting boxes and inserts, inserts for multimedia/communication adapter, communication adapter for BNC-F feed-through sockets. Suitable for TAE central plates 2539-21x and 1766-xxx. For accommodating one or two sockets. For installation in cable ducts, flush-mounted device boxes and underfloor systems. Without central plate. Without spreader. Protection class of device: IP 20

Property	Value
Mounting type:	Mounting with screw
Color:	white
RAL number (similar):	9010
Device height:	17.3 mm
Device width:	71 mm
Device depth:	71 mm
Label field:	without label field
Use:	Sat
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	other
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element
Support ring:	yes
With print:	no
Material:	metal
Material quality:	other
Halogen-free:	yes
Surface finish:	matt
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
