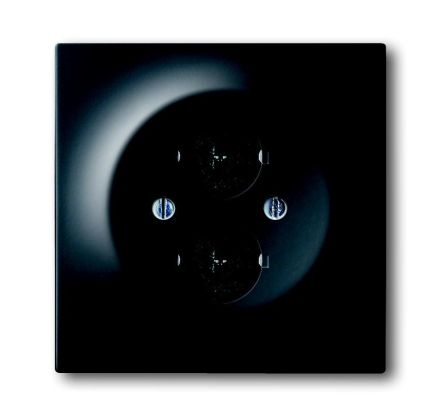

Busch-Jaeger 1751-775 central plate, with support ring black matt

Busch-Jaeger 1751-775 central plate, with support ring black matt

In stock

SKU: 119003

Price on request

€27.51

€0

Overview

With expansion fastening With 2 loudspeaker connectors. With solder connection. For covering according to DIN 41524, 41529, 45322, 45327, 45328 and 45329 of small sockets and round connectors with screw cap M 16x0.75 (can be installed in base insert).

Property	Value
Mounting type:	Claw/screw fastening
Color:	black
RAL number (similar):	9005
Device height:	71 mm
Device width:	71 mm
Device depth:	32 mm
Labeling field:	without labeling field
Use:	Speaker connection
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element with central cover plate
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Design of the Surface:	glossy
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
