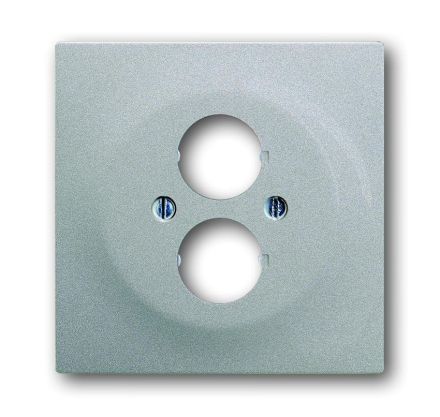

With expansion fastening With 2 loudspeaker connectors. With solder connection. For covering according to DIN 41524, 41529, 45322, 45327, 45328 and 45329 of small sockets and round connectors with screw cap M 16x0.75 (can be installed in base insert).
| Property | Value |
| Mounting type: | Claw/screw fastening |
| Color: | Aluminum |
| RAL number (similar): | 9006 |
| Device height: | 71 mm |
| Device width: | 71 mm |
| Device depth: | 32 mm |
| Label field: | without label field |
| Use: | Speaker connection |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | painted |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Base element with central cover plate |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Design of the Surface: | matt |
| With strain relief: | no |
| Lustre terminal: | no |
| Number of modules (with modular design): | 1 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 2 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. depth of the device box: | 40 mm |
