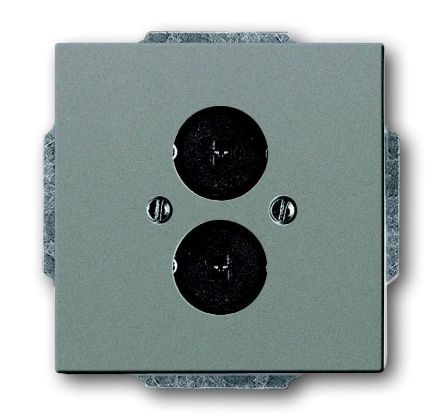

Busch-Jaeger 1751-803 central plate grey metallic

In stock

SKU: 118995

Price on request

€19.60

€0

Overview

Central plate, grey metallic, solo, covers for multimedia/communication adapter, central plate with support ring, spreader fastening and 2 loudspeaker connectors. Cable cross-sections up to 4 mm rigid. With screw connection. Protection class device: IP 20

Property	Value
Mounting type:	Claw/screw fastening
Color:	gray
Device height:	71 mm
Device width:	71 mm
Device depth:	32 mm
Label field:	without label field
Use:	Speaker connection
With dust protection:	no
Mounting type:	Flush-mounted
Surface:	painted
With hinged lid:	no
Suitable for protection class (IP):	IP20
Composition:	Base element with central cover plate
Support ring:	yes
With print:	no
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	glossy
With strain relief:	no
Lustre terminal:	no
Number of modules (with modular design):	1
Transparent:	no
Outlet direction:	straight
With sockets/couplings:	no
Suitable for number of sockets/couplings:	2
Sockets shielded:	no
Housing shielded:	no
Min. depth of the device box:	40 mm
