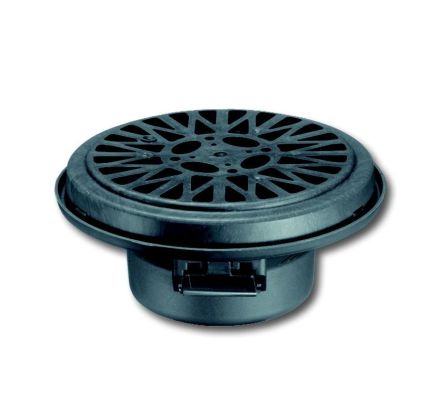

Busch-Jaeger 8222 EB built-in loudspeaker, 13 cm (5')

In stock
SKU: 118983
€38.27
Into a basketIn the basketGo

Overview

Built-in loudspeaker, multimedia, Busch-AudioWorld, built-in loudspeaker 13 cm (5) With broadband characteristics. For amplifier insert 8211 U and 8214 U. For Busch-DigitalRadio 8215 U. For Busch-Radio iNet 8216 U. For Busch-Radio BTconnect 8217 U. For Busch-Bluetooth Receiver 8219 U. For REG amplifier 8208. For microphone console 8205. With screw terminals. Rated power: 6 W (RMS) Frequency response: 72 - 12,000 Hz Impedance: 16 Ohm Protection class (device): IP 20, SELV Temperature range (device): 5 °C to 40 °C Dimensions (H x W x D): 148 mm x 148 mm x 69 mm

PropertyValue
Color:gray
Music power handling:9 W
Nominal power handling:6 W
Frequency:72 to 12000 Hz
Number of ways:1
Width:148 mm
Height:148 mm
Depth:69 mm
Active system:no
Bass reflex system:no
Volume control:no
Sound projector:no
Horn speaker:no
Protection class (IP):IP20
Floorstanding speaker:no
Suitable for ceiling mounting:yes
Suitable for recessed mounting:yes
Suitable for wall mounting:yes
Portable:no
Soundbar:no
Impedance:16 Ohm
Bluetooth:no
Ethernet:no
Mobile High-Definition Link (MHL):no
USB port:no
WLAN:no
Diameter:127 mm

Characteristics

Impedance16 Ohm
HAB8222 EB
ManufacturerBUSCH-JAEGER
HAN2CKA008200A0013
GTIN4011395054147
Width148 mm
Diameter127 mm
ColorGray
Frequency72 to 12000 Hz
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for wall mountingYes
Height148 mm
IP protection)IP20
Depth69 mm
