Busch-Jaeger 8229/2 hollow wall mounting ring

In stock

SKU: 118982

Price on request

€10.78

€0

Overview

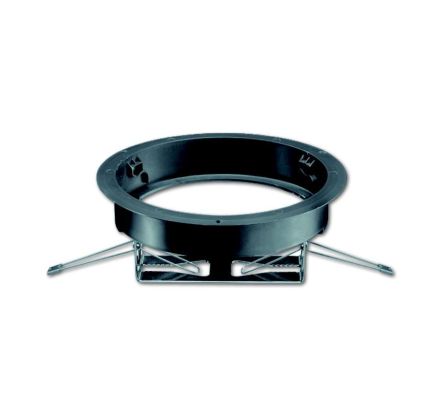

Hollow wall mounting ring, Multimedia, Busch-AudioWorld, Hollow wall mounting ring For built-in loudspeaker 8222 EB and damp room loudspeaker 8224 EB. For hollow wall/ceiling mounting. With spring clips. Drilling dimension: 160 mm. Dimensions (H x W x D): 174 mm x 174 mm x 105 mm Installation depth: 110 mm

Property	Value
Height:	50 mm
Width:	174 mm
Material:	plastic
RAL number (similar):	7043
Mounting direction:	horizontal and vertical
Number of units:	1
Color:	gray
Protection class (IP):	IP20
Suitable for built-in installation:	yes
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	174 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	no
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of units horizontal:	1
Number of units vertical:	1
Mounting type:	Clamp fastening
Hole diameter (opening):	160 mm
Installation width:	150 mm
Installation height:	110 mm
Transparent:	no
Number of switch inserts:	1
With mounting frame:	no
