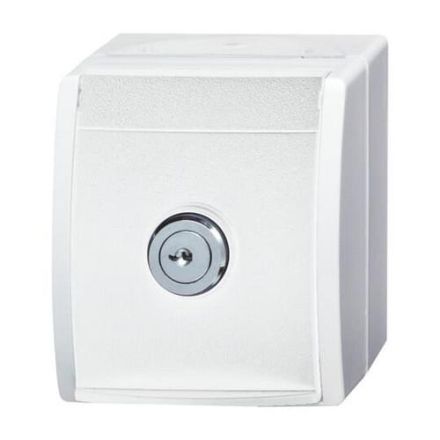

With plug connection. With security lock in the hinged lid. 2 P + E, standard lock with 2 identical keys. Cannot be unscrewed or removed when locked. Can be labeled with label holder 1763-53. Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de.
| Property | Value |
| RAL number (similar): | 9010 |
| Number of units: | 1 |
| Color: | white |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | yes |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | yes |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With Fine-wire fuse: | no |
| Mounting type: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Number of modules (with modular design): | 1 |
| Device width: | 83 mm |
| Device height: | 55 mm |
| Device depth: | 74 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK04 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With Signal lamp: | yes |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
