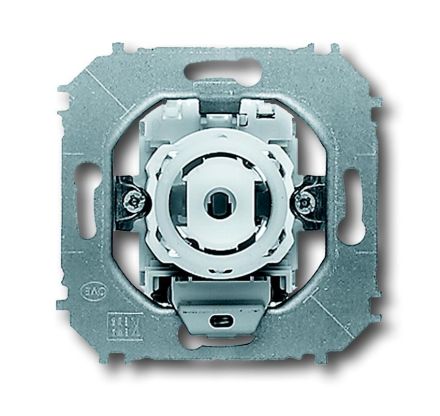

Busch-Jaeger 2001/2 UKGL-101 pressure sequence control switch insert, 2-pole, off switch

In stock
SKU: 119446
€22.94
Into a basketIn the basketGo

Overview

With glow lamp. Suitable for impuls central plate with actuation button. Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, install or Busch-Jaeger item no. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls or 3060 flush-mounted box for concrete) Control lamp for replacement 8305. Light ring cannot be illuminated.

PropertyValue
Color:white
Suitable for protection class (IP):IP20
Circuit type:2-pole switch
Operating type:Rocker/button
Number of actuating rockers:1
Mounting type:Flush-mounted
Push button:yes
Composition:Basic element
Fastening type:Claw/screw fastening
Material:Plastic
Material quality:Thermoplastic
Halogen-free:yes
Surface:untreated
Surface finish:matt
RAL number (similar):1013
Nominal voltage:250 V
Switching current for fluorescent lamps:10 AX
Feedback contact:no
Washing machine switch:no
Connection type:Plug-in terminal
Lighting:yes
Lighting type:Incandescent lamp
Lighting function:Control and orientation
Rated current:10 A
Installation depth:32 mm
Device depth:71 mm
Device width:71 mm
Device height:32 mm
With mounting plate:yes
Text field/labeling area:no
Min. depth of the device box:32 mm

Characteristics

Feedback contactNo
Number of actuating rockers1
Circuit typeSwitch 2-pole
LightingYes
Switching current for fluorescent lamps10 AX
Push buttonYes
Washing machine switchNo
Lighting functionControl and orientation
HAB2001/2 UKGL-101
ManufacturerBUSCH-JAEGER
HAN2CKA001022A0623
GTIN4011395644904
Connection typePlug-in terminal
Surface finishFrosted
Operating modeRocker/Button
Mounting typeClaw/screw fastening
Rated current10A
Installation depth32 mm
ColorWhite
Suitable for protection class (IP)IP20
Device width71 mm
Device height32 mm
Device depth71 mm
Halogen freeYes
Min. depth of the device box32 mm
With mounting plateYes
Mounting typeFlush-mounted
Nominal voltage250V
SurfaceUntreated
RAL number (similar)1013
Text field/label areaNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
