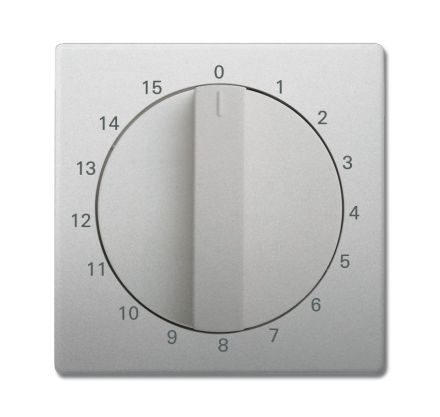

Busch-Jaeger 1770-866-103 Central plate, with rotary knob, with print stainless steel

Busch-Jaeger 1770-866-103 Central plate, with rotary knob, with print stainless steel

In stock

SKU: 317725

Price on request

€25.37

€0

Into a basketIn the basketGo

Overview

Central disc, stainless steel, pure stainless steel, control elements for blind control/timer, central disc with rotary knob, with print for Busch timer insert 1070 U. Running time: 15 min. Surface painted plastic. Protection class device: IP 20

Property	Value
Design:	Toggle
Use:	Timer
Mounting type:	Clamp fastening
Print/marking:	Time display
Suitable for bus system button connection:	no
Suitable for protection class (IP):	IP20
Color:	Stainless steel
Halogen-free:	yes
Control window/light outlet:	no
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	matt
With label field:	no
With replaceable lens/symbol:	no
Scannable symbol/barrier-free:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch covers

HAB1770-866-103

Manufacturer

HAN2CKA001753A0259

GTIN4011395226520

Tactile symbol/barrier-freeNo

Printing/markingTime display

VersionGag

Surface finishFrosted

Mounting typeClamp fastening

Color

Suitable for bus system button couplingNo

Suitable for protection class (IP)IP20

Halogen freeYes

Inspection window/light outletNo

With label fieldNo

With interchangeable lens/symbolNo

SurfacePainted

Impact resistanceIK03

UseTimer

MaterialPlastic

Material qualityThermoplastic
