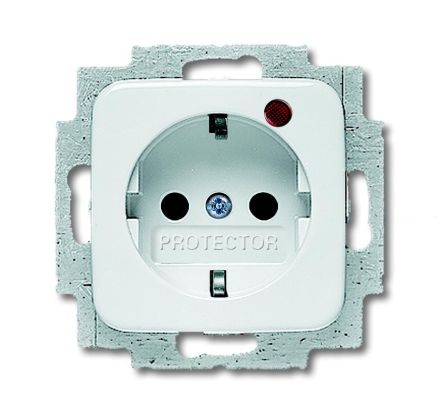

Busch-Jaeger 2310 EUGL/VAB-214 Busch-Protector® SCHUKO® socket insert, with surge protection alpine white

In stock
SKU: 118562
€155.26
Into a basketIn the basketGo

Overview

With increased contact protection. With screw connection. 2-pole (2 P + E) With integrated and external signaling contact. Device protection for technically sensitive end devices such as computers, entertainment electronics and building technology. Effectively reduces overvoltages that occur between the sub-distribution and the SCHUKO® socket insert. Arrester test class: Classification Type 2 ISN = 5 kA SCHUKO® socket with increased contact protection (VDE 0620). Replaces the previous term with child protection.


Version: with overvoltage protection
Design: flush-mounted
Color: alpine white

PropertyValue
RAL number (similar):9010
Number of units:1
Color:white
Suitable for protection class (IP):IP20
Nominal voltage:250 V
Nominal current:16 A
Lockable:no
With increased contact protection:yes
With hinged lid:no
Mounting type:Flush-mounted
Text field/labeling area:no
Frequency:50 Hz
Ejection mechanism:no
Halogen-free:yes
Surge protection:yes
Residual current protection:no
Special power supply:without special power supply
Twisted central insert:no
Connection type:Plug-in terminal
With Fine-wire fuse:no
Mounting type:claw/screw fastening
Material:plastic
Material quality:thermoplastic
Surface:untreated
Surface finish:glossy
Device width:12 mm
Device height:32 mm
Device depth:71 mm
Insulated installation:yes
With loop-through function:yes
With on/off switch:no
With built-in USB power supply:no
With function lighting:no
With orientation lighting:no
Impact resistance:IK03
Transparent:no
Protective contact:yes
Protective conductor contact round:no
Number of active contacts (round):2
With signal lamp:yes
Number of Phases:1
Antibacterial treatment:no
Min. depth of device box:40 mm

Characteristics

HAB2310 EUGL/VAB-214
ManufacturerBUSCH-JAEGER
HAN2CKA002013A5321
GTIN4011395123027
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorWhite
Residual current protectionNo
Frequency50Hz
Suitable for protection class (IP)IP20
Device width12 mm
Device height32 mm
Device depth71 mm
Halogen freeYes
Insulated installationYes
Min. depth of the device box40 mm
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampYes
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
SurfaceUntreated
RAL number (similar)9010
Impact resistanceIK03
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionYes
