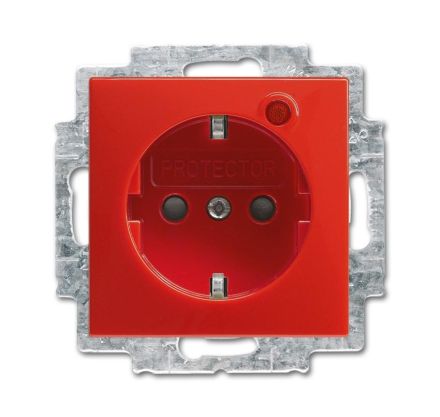

HAB2310 EUGL/VAB-917
HAN2CKA002011A6240
GTIN4011395192252
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
Residual current protectionNo
Frequency50Hz
Suitable for protection class (IP)IP20
Device width71 mm
Device height12 mm
Device depth1 mm
Halogen freeYes
Insulated installationYes
Min. depth of the device box40 mm
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampYes
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
SurfaceUntreated
RAL number (similar)3020
Impact resistanceIK03
Protective contactYes
Protective conductor contact roundNo
Special power supplyIt
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionYes
